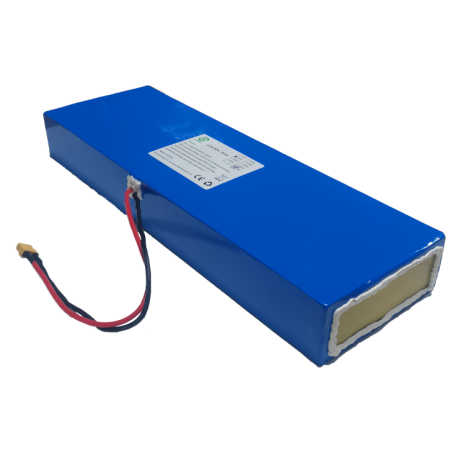

24V 75AH Lithium ion phosphate battery for AGV robot
LF24V75AH
24V 75AH Lithium ion phosphate battery for AGV robot
The Battery Model: 24V75AH
Nominal Voltage: 25.6V
Nominal Capacity: 75.0Ah
Cycle Life: 4000 times, 80% DOD
Recommended Charge Current: 8.0A
Max Charge Current: 40.0A
Max Discharge Current: 40.0A
Peak Discharge Current: 80.0A(≤3S)
Working Temperature: -20 to 60ºC
Enclosure Protection: PVC
Dimension(L x W x H): 576 x 95 x 75mm
Weight: 15.0Kg
Certifications: UN38.3,CE
The Battery Model: 24V75AH
Nominal Voltage: 25.6V
Nominal Capacity: 75.0Ah
Cycle Life: 4000 times, 80% DOD
Recommended Charge Current: 8.0A
Max Charge Current: 40.0A
Max Discharge Current: 40.0A
Peak Discharge Current: 80.0A(≤3S)
Working Temperature: -20 to 60ºC
Enclosure Protection: PVC
Dimension(L x W x H): 576 x 95 x 75mm
Weight: 15.0Kg
Certifications: UN38.3,CE
Quantity:
24V 75AH Lithium ion phosphate battery for AGV robot
PRODUCT PARAMETER
| Model | 24V75AH | Peak Discharge Current | 40A |
| Nominal Voltage (Vdc) | 20.0 | Dimension (L*W*H, mm) | 576*95*75 |
| Nominal Capacity (AH) | 75 | Communication | / |
| Maximum Modules in Series/Parallel | / | Protection Class | IP54 |
| Charging Cut-off Voltage (Vdc) | 29.2 | Weight | 15.0KG |
| Standard Charge Current | 8A | Operation Life | 10+ years |
| Recommended Charge Current | 20A | Operation Cycle Life | Over 4000 times |

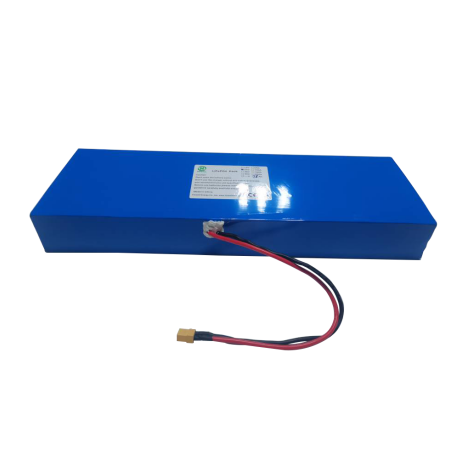

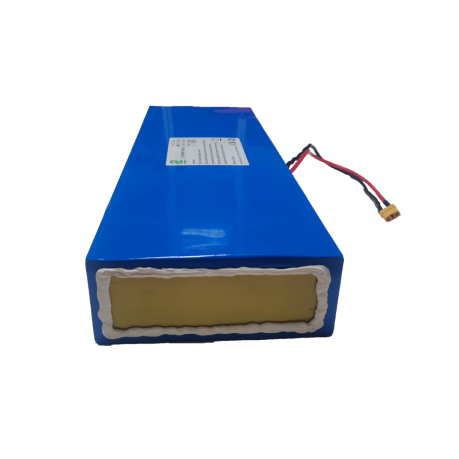

PRODUCTS DISPLAY
APPLICATION

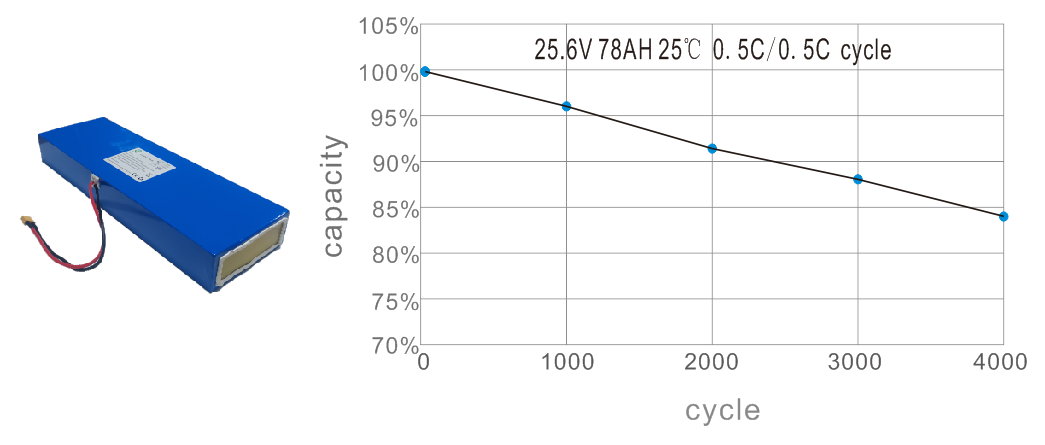

PERFORMANCE CHARACTERISTICS
PRODUCTS ADVANTAGE
24V 75AH Lithium ion phosphate battery for AGV robot
1.It adopts lithium iron phosphate battery, which is environmentally friendly and safe.
2.The service life is long, the product can be guaranteed for 10 years, and the service life is more than 15 years.
3.Modular design, easy for customers to install and maintain.
PACKING
Good Quality Packs

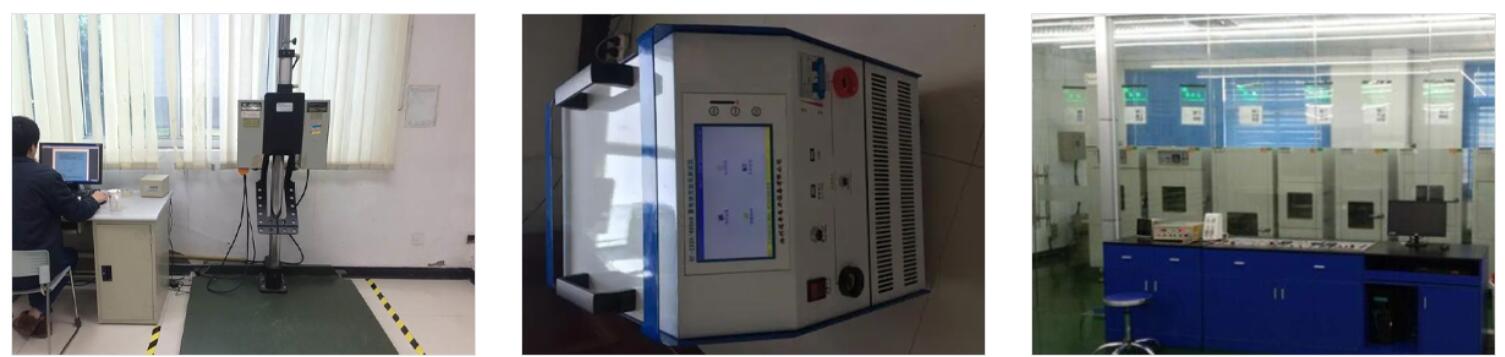

SUPER SAFETY TEST
24V 75AH Lithium ion phosphate battery for AGV robot have been certified by UL, CE, ROHS, REACH, etc.
24V 75AH Lithium ion phosphate battery can be used for Surveillance & Alarm device, Mecial Device,Solar Lighting, Emergency Power Backup Systems, Golf Cart, Electric Scooter, E-bike, Electric Wheelchair, AGVs, etc.
