Deep Cycle Rechargeable 12V 50Ah LiFePO4 Lithium Battery Pack
HWE-4F50
Deep Cycle Rechargeable 12V 50Ah LiFePO4 Lithium Battery Pack
Application: Solar/Wind Energy Storage/Back-up Power for UPS/ EPS/Telecommunication/Low Speed Electric Vehicles/Marine Boats/DC Power
Application: Solar/Wind Energy Storage/Back-up Power for UPS/ EPS/Telecommunication/Low Speed Electric Vehicles/Marine Boats/DC Power
Quantity:
PRODUCT PARAMETER
| Model | HWE-4F50 | Peak Discharge Current | 50A |
| Products Type | Lifepo4 | Efficiency | 98% |
| Energy (Wh) | 640 | Depth of Discharge | 100% |
| Nominal Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 197*165*175 |
| Nominal Capacity (AH) | 50 | Communication | / |
| Maximum Modules in Series/Parallel | 4S4P | Protection Class | IP65 |
| Charging Cut-off Voltage (Vdc) | 14.6 | Weight | 6.5KG |
| Standard Charge Current | 10A | Operation Life | 10+ years |
| Recommended Charge Current | 10A | Operation Cycle Life | Over 4000 times |
| Maximum Charge Current | 50A | Operation Temperature | 0-50℃ |
| Discharge Cut-off Voltage | 10V | Storage Temperature | -20 -- 60 ℃ |
| Standard Discharge Current | 25A | Products certificates | IEC62619, CE |
| Maximum Discharge Current | 50A | Transport Certificates | UN38.3 , MSDS |

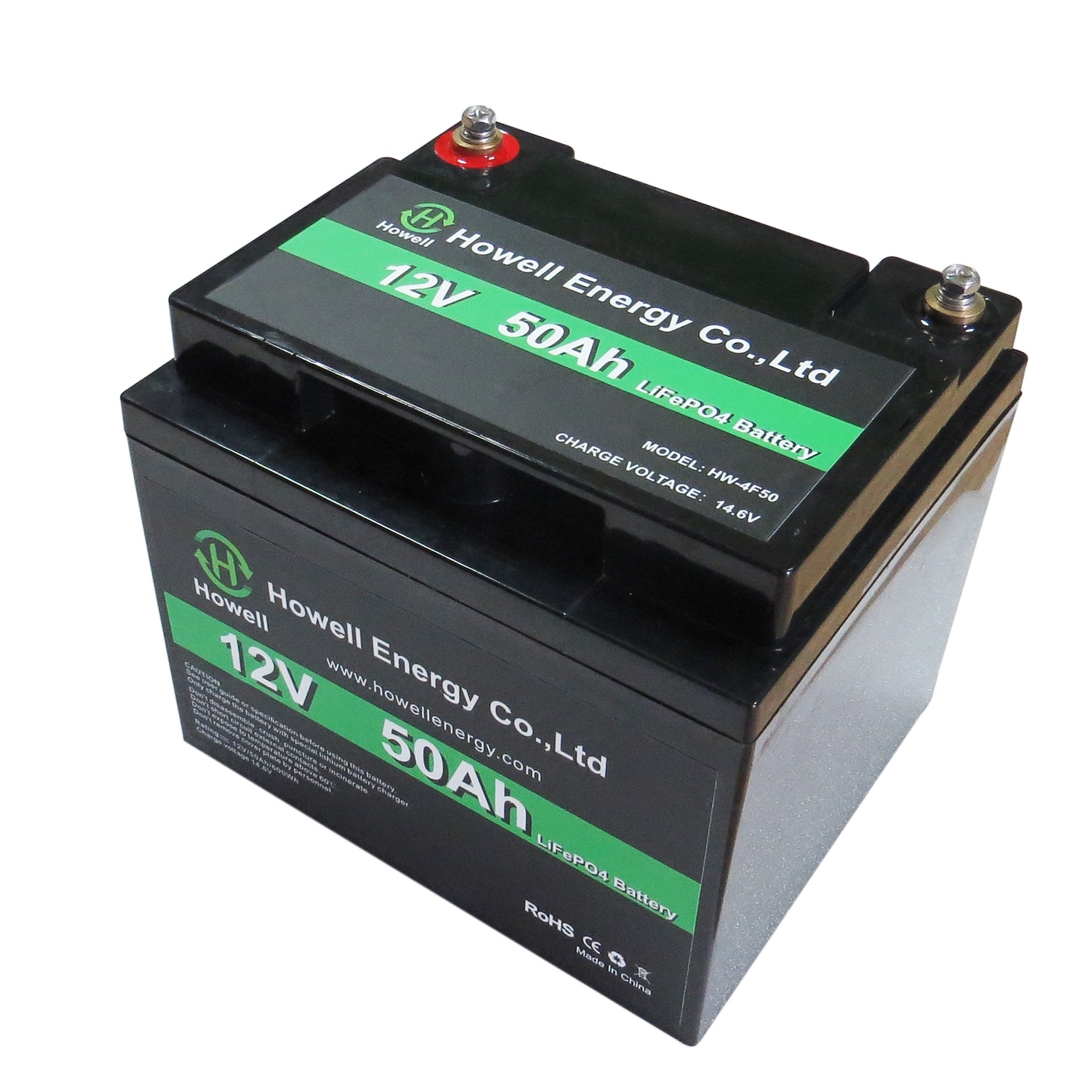

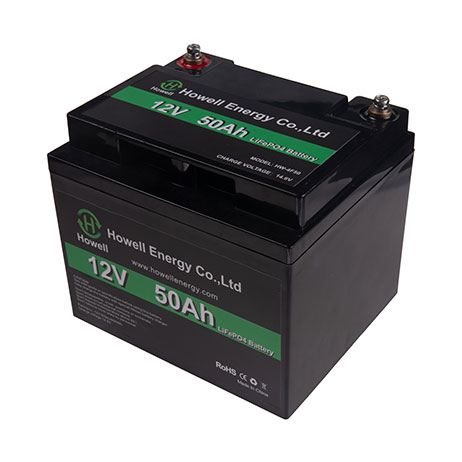

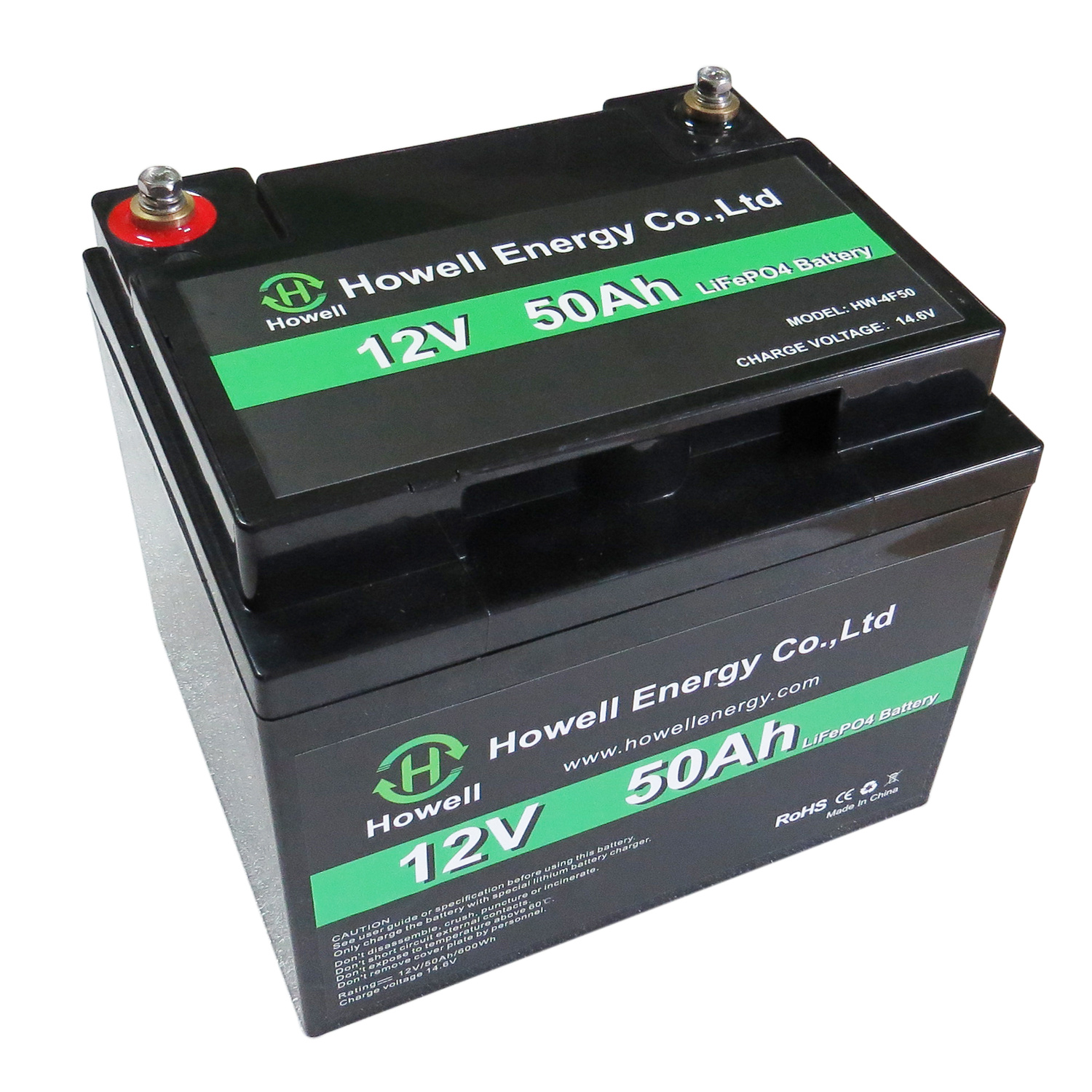

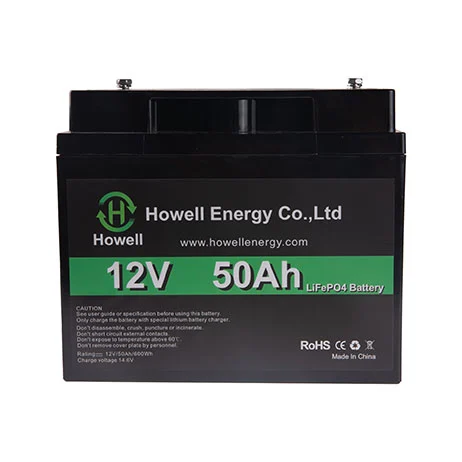

PRODUCTS DISPLAY
APPLICATION
Howell 12V 50Ah LiFePO4 Lithium Battery Pack is a kind of new environmental-friendly backup power system product made by our self-developed core technologies. 12V 50Ah LiFePO4 Lithium Battery Pack has great features of short-time and high-rate discharge (1C) and over 4000 times of cycle life. With a built-in BMS, 12V 50Ah LiFePO4 Lithium Battery Pack is fully protected under high-voltage protection and featured with higher reliability. 12V 50Ah LiFePO4 Lithium Battery Pack also has impressive weight reduction and high integration which can save more installation space. 12V 50Ah LiFePO4 Lithium Battery Pack has no memory effect and enjoys free maintenance, saving a lot of labor for people. In addition, 12V 50Ah LiFePO4 Lithium Battery Pack enjoys over 10 years of operational life. 12V 50Ah LiFePO4 Lithium Battery Pack is a perfect replacement for the conventional lead-acid, AGM, gel batteries for its high performance and increased efficiency and can be widely used in many fields like camping cars, RV motorhome, golf carts, boat marine yachts, electric skateboard, LED backup, engine starting battery, mobile POS and mining light.
PERFORMANCE CHARACTERISTICS
PACKING
Good Quality Packs

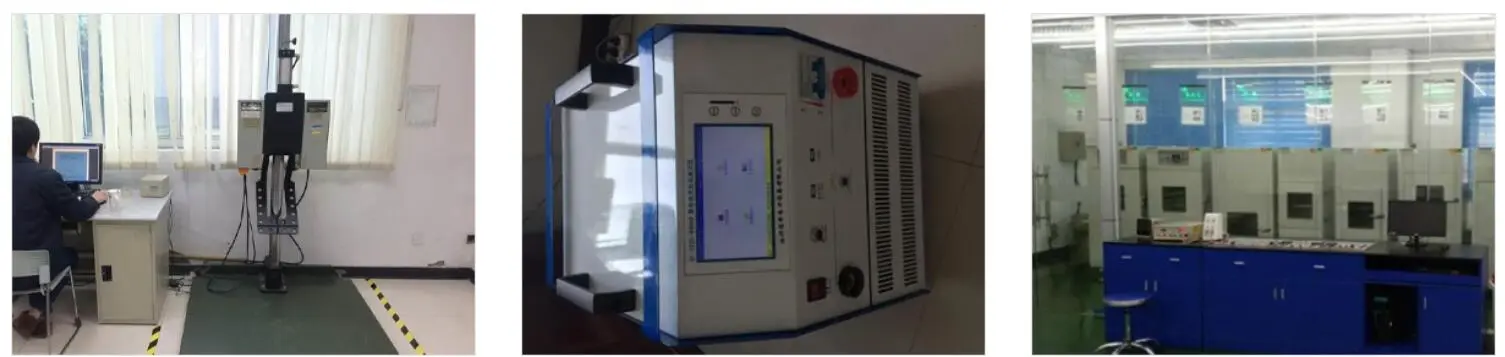

SUPER SAFETY TEST
12V 50Ah LiFePO4 Lithium Battery Pack passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
