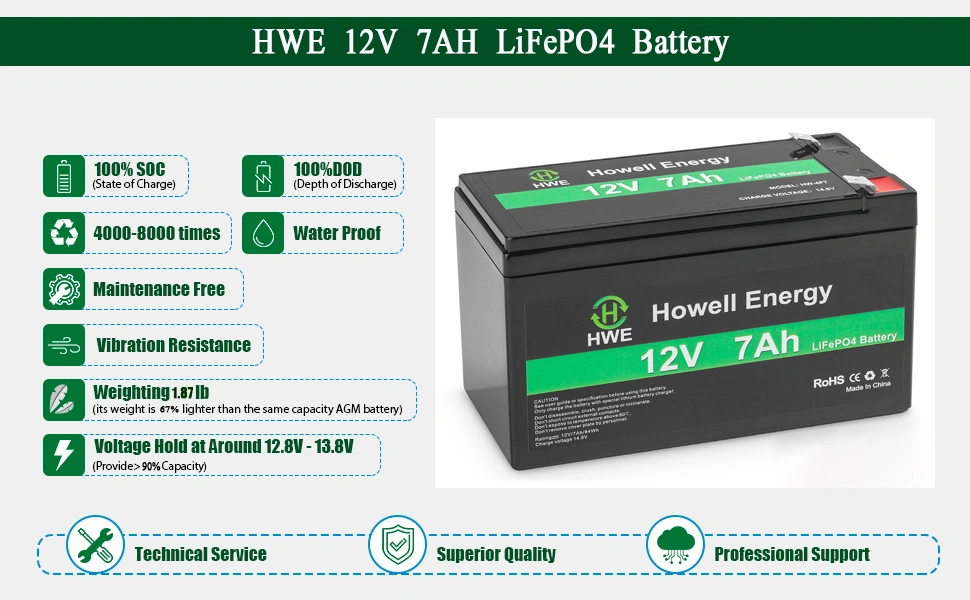

UN38.3 and IEC62133 approved 12V 7Ah lithium iron phosphate battery pack for UPS
HWE-4F7
UN38.3 and IEC62133 approved lithium iron phosphate battery pack for UPS
Application: Solar/Wind Energy Storage/Back-up Power for UPS/ EPS/Telecommunication/Low Speed Electric Vehicles/Marine Boats/DC Power /Electric Toys
The Battery Model: HWE-4F7
Nominal Voltage: 12.8V
Nominal Capacity: 7.0Ah
Cycle Life: 4000 times, 80% DOD
Recommended Charge Current: 3.5A
Max Charge Current: 7.0A
Max Discharge Current: 7.0A
Peak Discharge Current: 14.0A(≤3S)
Working Temperature: -20 to 60ºC
Enclosure Protection: ABS+PC

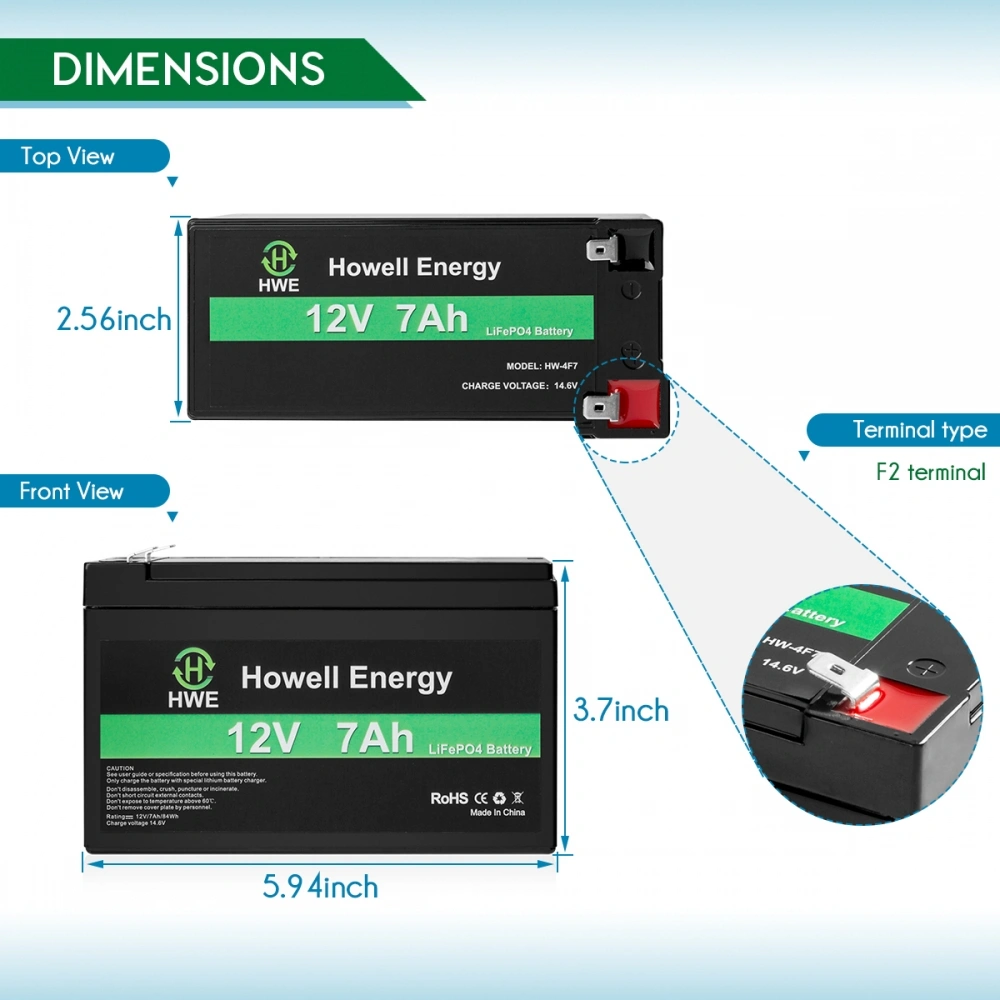

Dimension((L x W x H/TH)): 151 x 65 x94/100mm
Weight: 0.9Kg
Certifications: UN38.3,CE
Application: Solar/Wind Energy Storage/Back-up Power for UPS/ EPS/Telecommunication/Low Speed Electric Vehicles/Marine Boats/DC Power /Electric Toys
The Battery Model: HWE-4F7
Nominal Voltage: 12.8V
Nominal Capacity: 7.0Ah
Cycle Life: 4000 times, 80% DOD
Recommended Charge Current: 3.5A
Max Charge Current: 7.0A
Max Discharge Current: 7.0A
Peak Discharge Current: 14.0A(≤3S)
Working Temperature: -20 to 60ºC
Enclosure Protection: ABS+PC
Dimension((L x W x H/TH)): 151 x 65 x94/100mm
Weight: 0.9Kg
Certifications: UN38.3,CE
Quantity:
PRODUCT PARAMETER
| Product | 12V 7Ah lithium iron phosphate battery pack | Peak Discharge Current | 7.0A |
| Products Type | Lifepo4 | Efficiency | 98% |
| Energy (Wh) | 89.6 | Depth of Discharge | 100% |
| Nominal Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 151*65*100 |
| Nominal Capacity (AH) | 7.0 | Communication | / |
| Maximum Modules in Series/Parallel | 2S4P | Protection Class | IP65 |

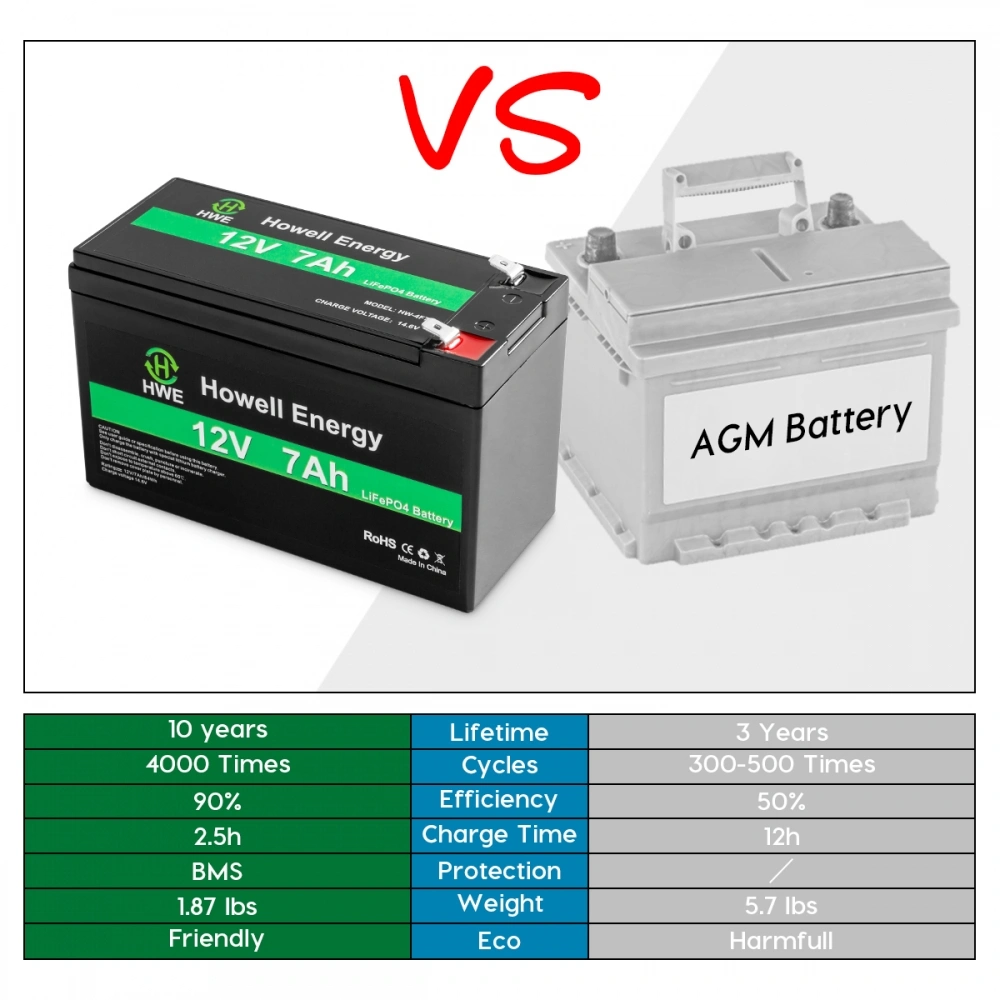

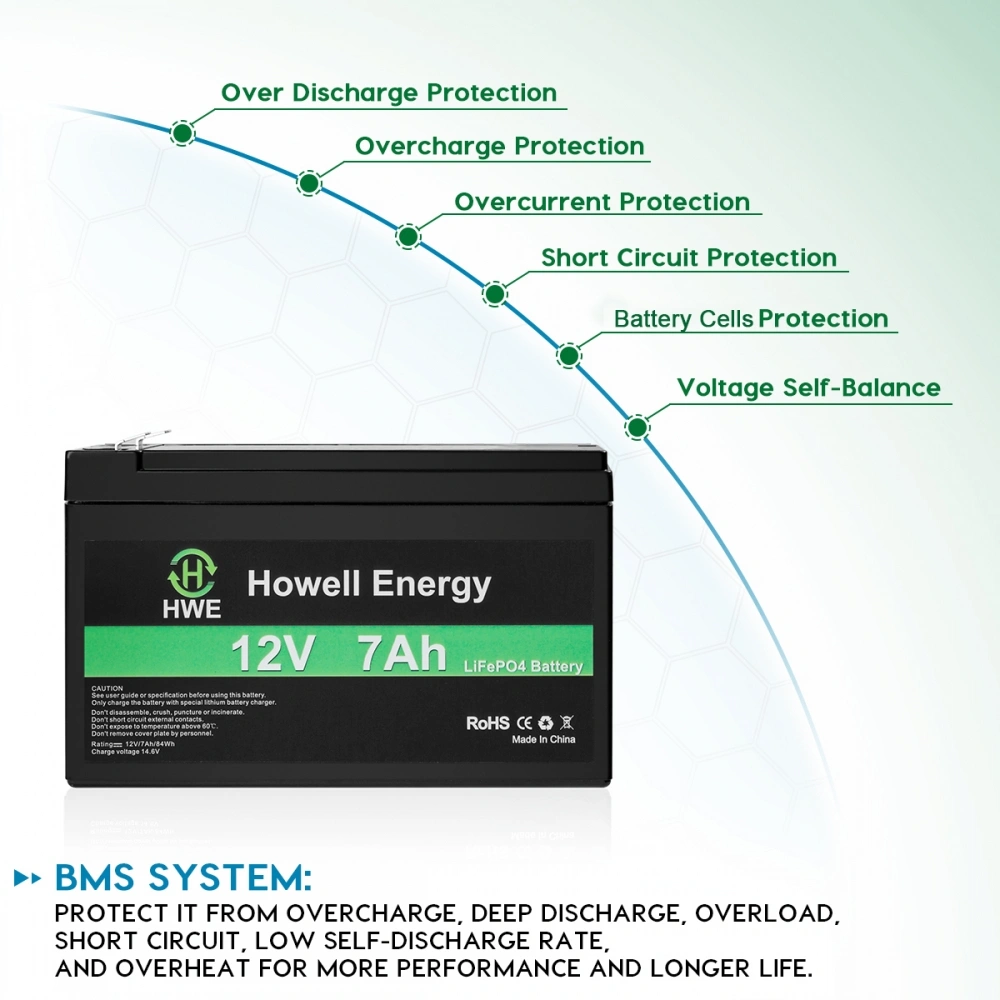

Howell 12V 7Ah lithium iron phosphate battery pack is a kind of new environmental-friendly backup power system product made by our self-developed core technologies. 12V 7Ah lithium iron phosphate battery pack has great features of short-time and high-rate discharge (1C) and over 4000 times of cycle life. With a built-in BMS, the product is fully protected under high-voltage protection and featured with higher reliability. It also has impressive weight reduction and high integration which can save more installation space. 12V 7Ah lithium iron phosphate battery pack has no memory effect and enjoys free maintenance, saving a lot of labor for people. In addition, it enjoys over 10 years of operational life. 12V 7Ah lithium iron phosphate battery pack is a perfect replacement for the conventional lead-acid, AGM, gel batteries for its high performance and increased efficiency and can be widely used in many fields like camping cars, RV motorhome, golf carts, boat marine yachts, electric skateboard, LED backup, engine starting battery, mobile POS and mining light.
PACKING
Good Quality Packs

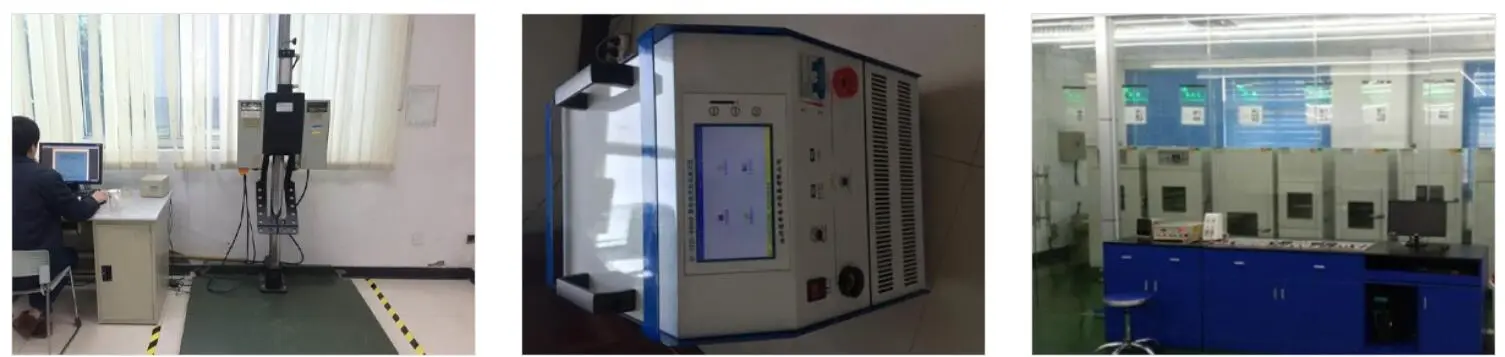

SUPER SAFETY TEST
12V 7Ah lithium iron phosphate battery pack passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
