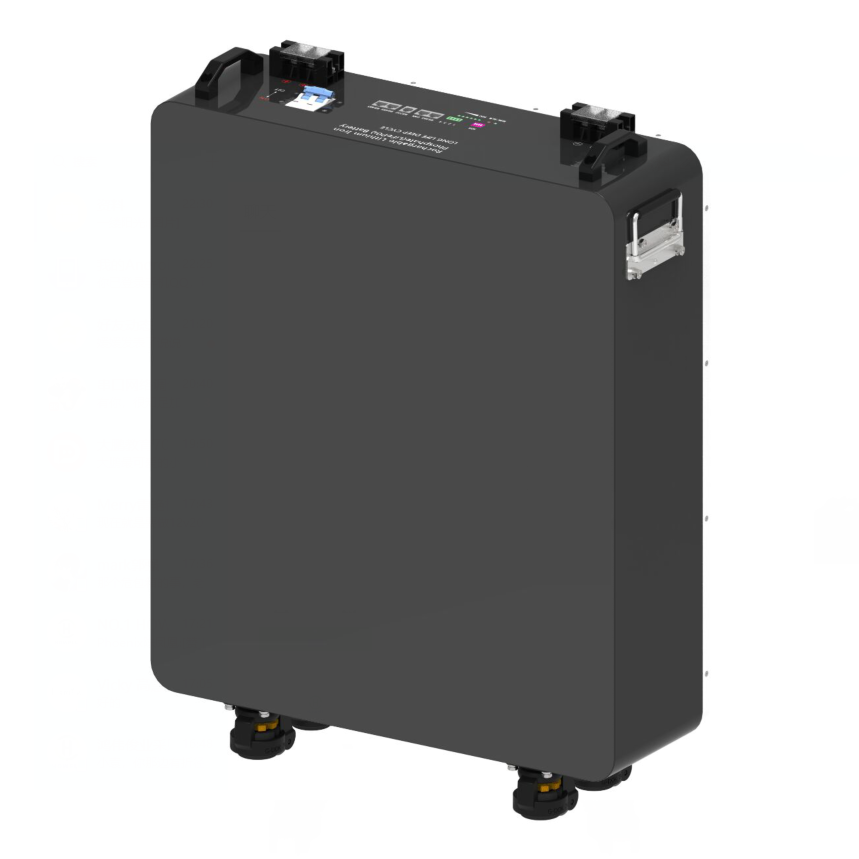

LiFePO4 48V 200Ah battery pack

10KWH LiFePO4 48V 200Ah battery pack with RS485,RS232 communication for home storage system

HWE-16F100BG
Application: can be widely used in indoor distribution stations, integrated base stations, marginal stations, distributed power supply and other fields.

The Battery Model: HWE-16F200LD
Nominal Voltage: 51.2V
Nominal Capacity: 200.0Ah

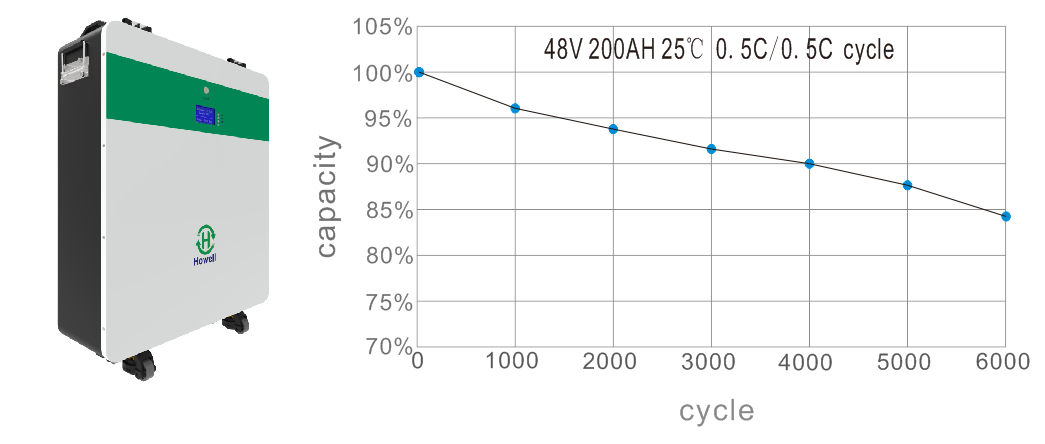

Cycle Life: 6000 times, 80% DOD
Recommended Charge Current: 50.0A
Max Charge Current: 100A
Max Discharge Current: 100.0A
Peak Discharge Current: 200.0A(≤3S)
Working Temperature: -20 to 60ºC
Enclosure Protection: Sheet metal shell
Dimension(W x H xD): 575 x 764 x 190mm
Weight: 110Kg
Certifications: UN38.3,CE
Quantity:
Contact Now
add to cart

LiFePO4 48V 200Ah battery manufacturer

LiFePO4 48V 200Ah battery manufacturer




LiFePO4 48V 200Ah battery manufacturer




LiFePO4 48V 200Ah battery manufacturer


PRODUCT PARAMETER

Product10KWH LiFePO4 48V 200Ah battery packPeak Discharge Current200A
Products TypeLiFePO4Efficiency98%
Energy (Wh)10240Depth of Discharge100%
Nominal Voltage (Vdc)51.2Dimension (L*W*H, mm)575*764*190
Nominal Capacity (AH)200CommunicationOption of CANBUS OR RS485, RS232
Maximum Modules in Series/Parallel16PProtection ClassIP22

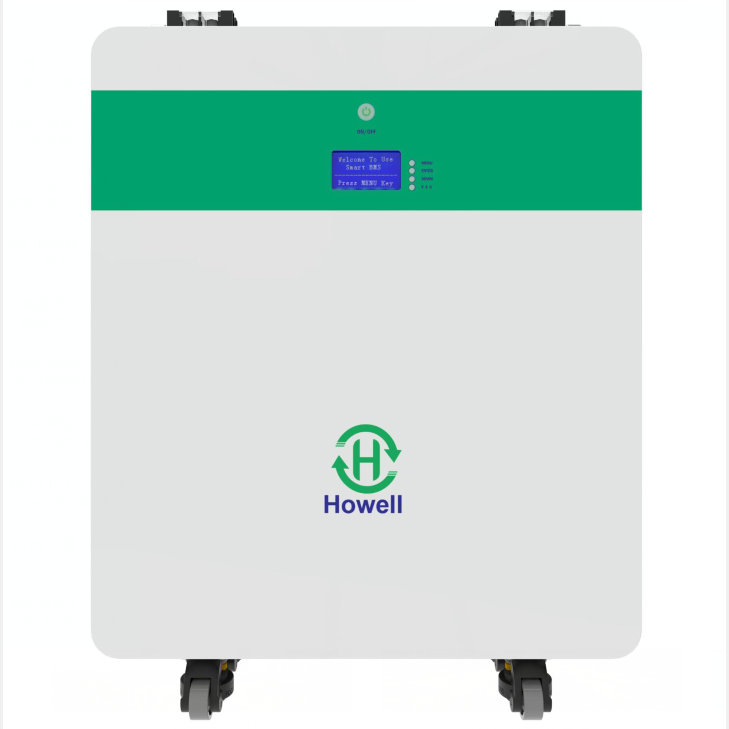

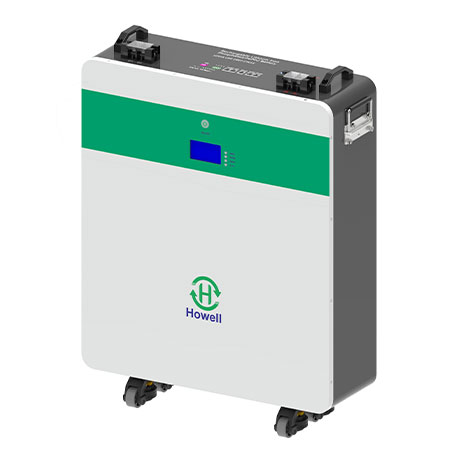

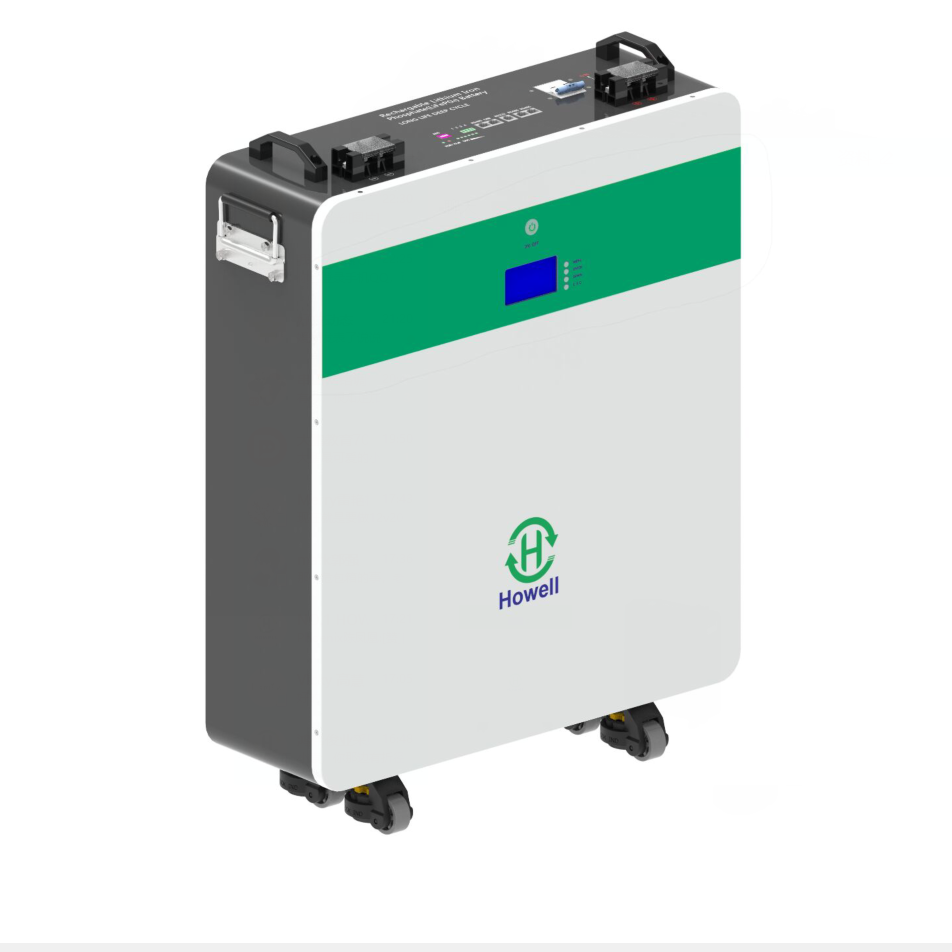

PRODUCTS DISPLAY

LiFePO4 48V 200Ah battery manufacturerLiFePO4 48V 200Ah battery manufacturer

LiFePO4 48V 200Ah battery manufacturerLiFePO4 48V 200Ah battery manufacturer

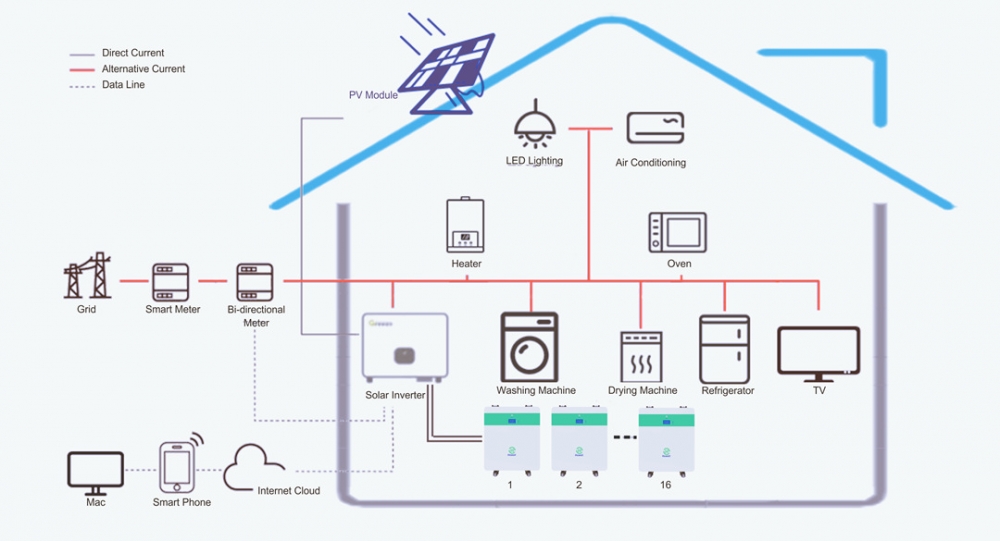

APPLICATION

Howell 10KWH LiFePO4 48V 200Ah battery pack is a new type of backup power supply for the development of high-tech products, with integration, miniaturization, light, intelligent, standardized, environmental protection and other characteristics. 10KWH LiFePO4 48V 200Ah battery pack can be widely used in indoor distribution stations, integrated base stations, marginal stations, ETC,   specific power,  low temperature performance is superior, but large current charge and discharge, and many other advantages. 10KWH LiFePO4 48V 200Ah battery pack using suitable for communication demand special high performance battery management system (BMS), with the charge, over discharge, short circuit, over-current (load), temperature, flow, total pressure protection,  charging under the secondary electricity, balanced and various protective functions. 10KWH LiFePO4 48V 200Ah battery pack provides the bluetooth, CAN, RS485 communication interface and the upper machine to realize remote monitoring, can be connected to the base station.

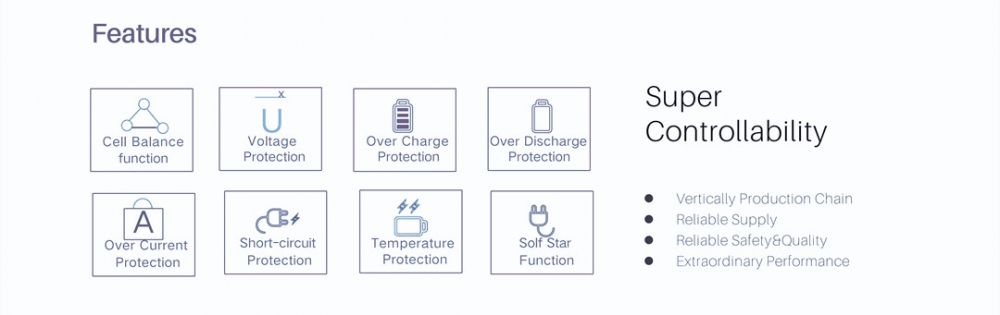

PERFORMANCE CHARACTERISTICS

LiFePO4 48V 200Ah battery manufacturer

LiFePO4 48V 200Ah battery manufacturer

LiFePO4 48V 200Ah battery manufacturer


PACKING

Good Quality Packs

LiFePO4 48V 200Ah battery manufacturer
