10KWH lithium 48V 200Ah LiFePO4 battery pack with RS485,RS232 communication for home storage system

HWE-16F200

Application: can be widely used in indoor distribution stations, integrated base stations, marginal stations, distributed power supply and other fields.

The Battery Model: HWE-16F200L
Nominal Voltage: 51.2V
Nominal Capacity: 200.0Ah
Cycle Life: 6000 times, 80% DOD
Recommended Charge Current: 50.0A
Max Charge Current: 100A
Max Discharge Current: 100.0A
Peak Discharge Current: 200.0A(≤3S)
Working Temperature: -20 to 60℃
Enclosure Protection: Sheet metal shell
Dimension(W xL xD): 560 x 482 x 222mm
Weight: 82Kg
Certifications: UN38.3,CE

Quantity:

Contact Now

add to cart

PRODUCT PARAMETER

Product	lithium 48V 200Ah LiFePO4 battery pack	Peak Discharge Current	100A
Products Type	LiFePO4	Efficiency	98%
Energy (Wh)	10240	Depth of Discharge	100%
Nominal Voltage (Vdc)	51.2	Dimension (LWH, mm)	222430482
Nominal Capacity (AH)	100	Communication	Option of CANBUS OR RS485, SMbus
Maximum Modules in Series/Parallel	16P	Protection Class	IP22
Charging Cut-off Voltage (Vdc)	58.4	Weight	82KG

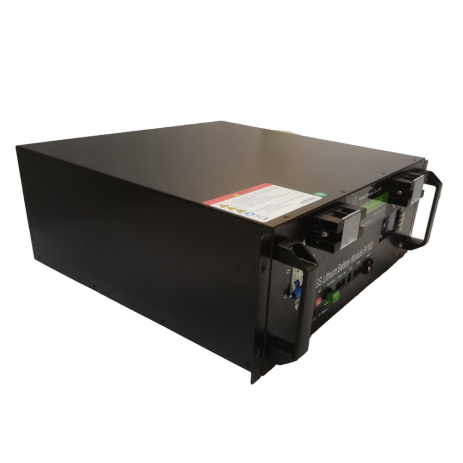

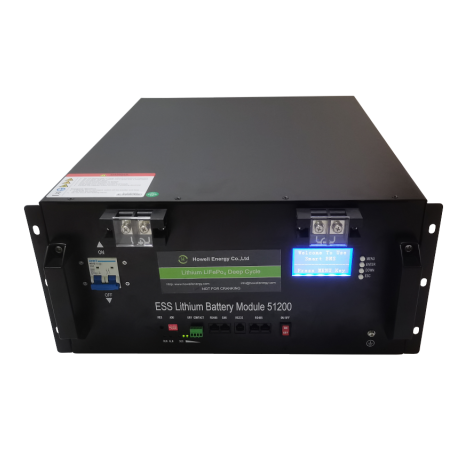

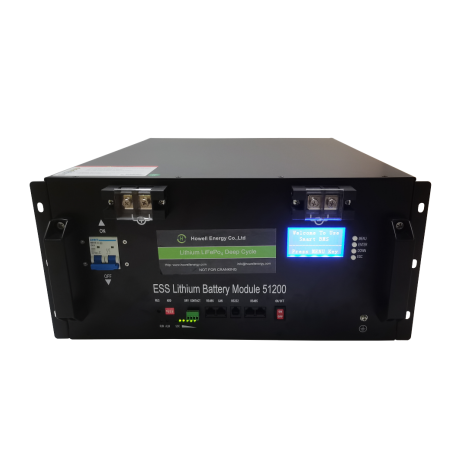

PRODUCTS DISPLAY

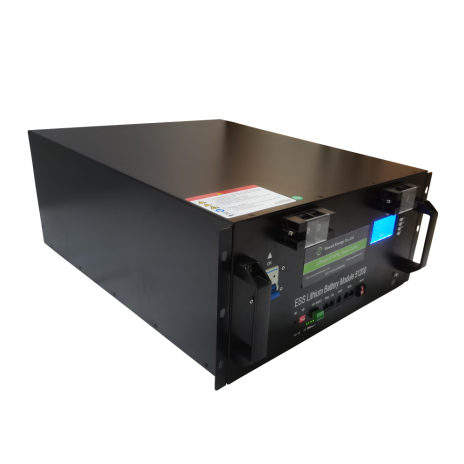

48V 200Ah LiFePO4 battery pack manufacturer

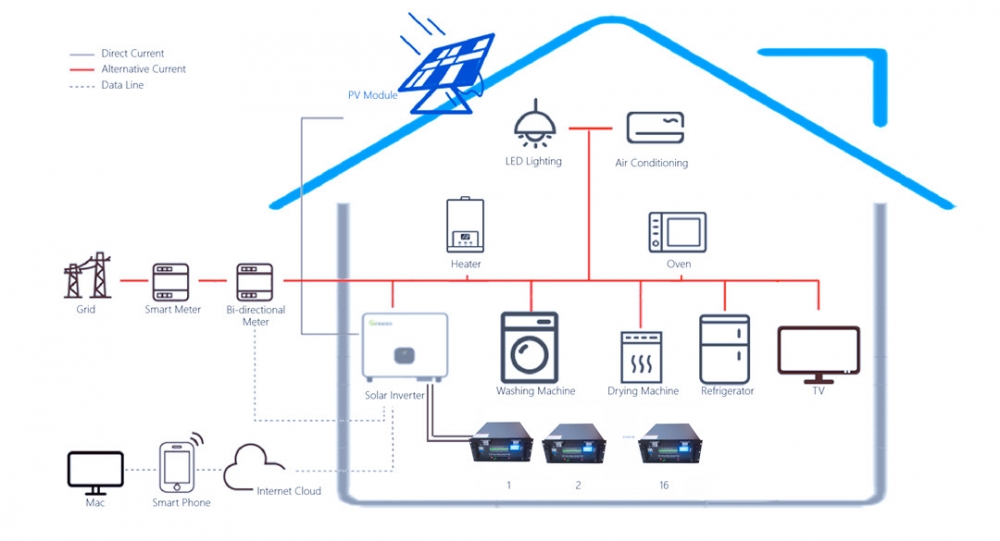

APPLICATION

Howell 10KWH lithium 48V 200Ah LiFePO4 battery pack is a new type of backup power supply for the development of high-tech products, with integration, miniaturization, light, intelligent, standardized, environmental protection and other characteristics.

10KWH lithium 48V 200Ah LiFePO4 battery pack can be widely used in indoor distribution stations, integrated base stations, marginal stations, ETC, specific power, low temperature performance is superior, but large current charge and discharge, and many other advantages.

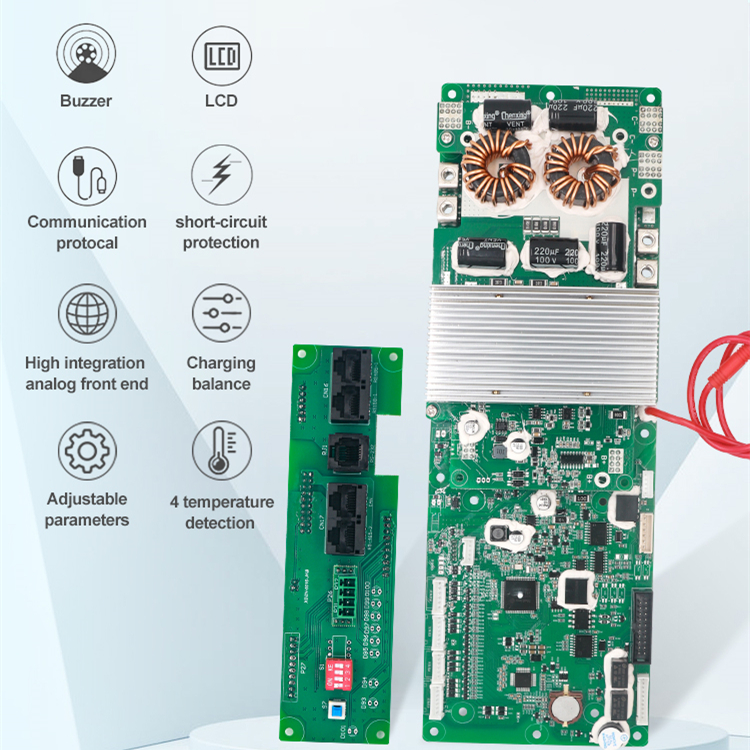

lithium 48V 200Ah LiFePO4 battery pack using suitable for communication demand special high performance battery management system (BMS), with the charge, over discharge, short circuit, over-current (load), temperature, flow, total pressure protection, charging under the secondary electricity, balanced and various protective functions.

lithium 48V 200Ah LiFePO4 battery pack provides the bluetooth 、CAN 、RS485 communication interface and the upper machine to realize remote monitoring, can be connected to the base station.

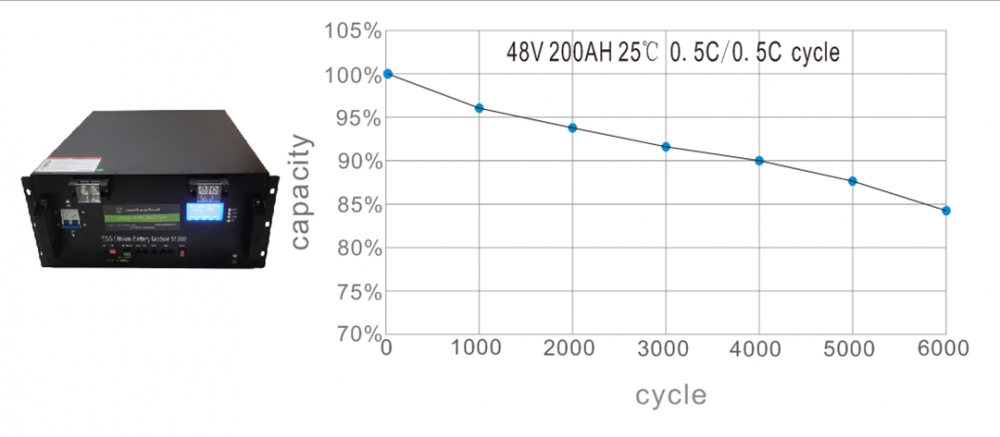

PERFORMANCE CHARACTERISTICS

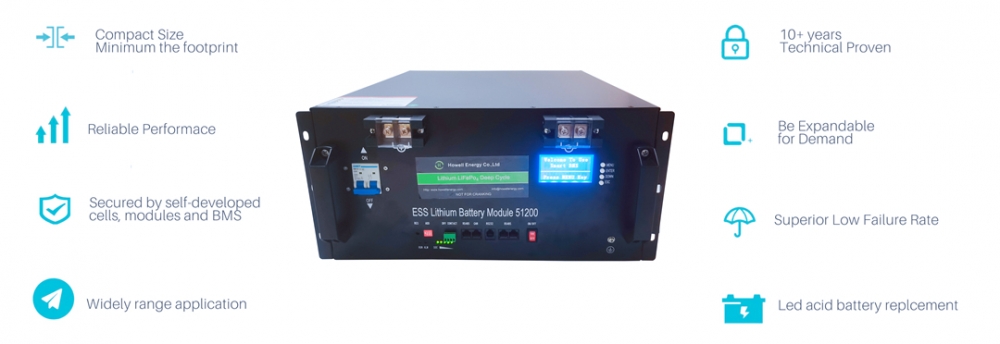

PRODUCTS ADVANTAGE

lithium 48V 200Ah LiFePO4 battery pack

● Module level auto-balancing
●Compatible with over 20 inverters
●Tier One, A+ Cell Composition
●10.24kWh expandable up to 163.84kWh.
●AC Coupled for both new and retrofitted installations
●Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

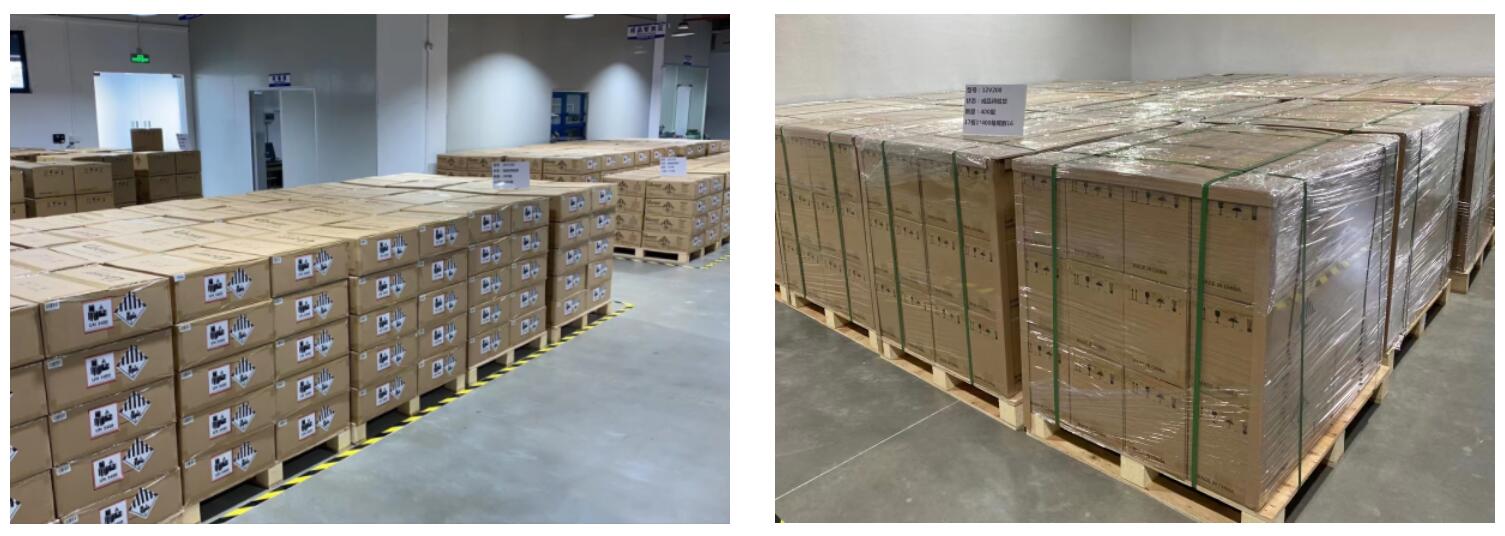

PACKING

Good Quality Packs

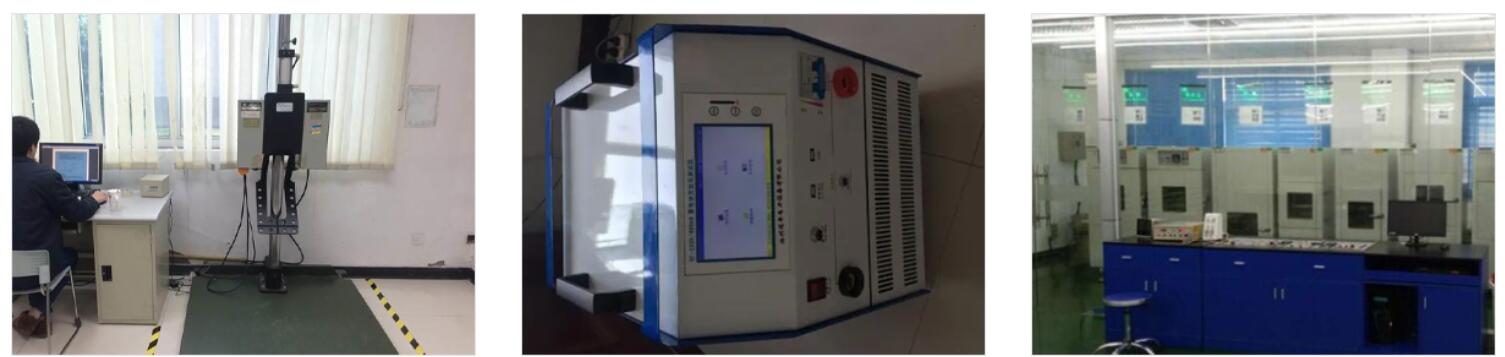

SUPER SAFETY TEST
